Manual Crimping Machine by SC.I.M in South West of France

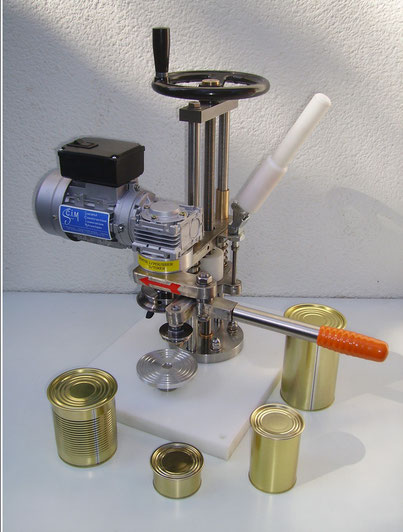

Manual crimping machine            "SERTINOX BASIC"

Sertisseuse manuelle de table pour boîtes rondes, modèle familial ou de laboratoires. SCIM

Description:

* Crimping tool table

   Type box rotating
   Ability to crimp : diam 52 to 100 mm
   Maximum height : 230 mm
Command:
 * Crimping lever arm
 * Setting compression of the box by hinged lever
 * Height adjustment by flying with blocking position
 * Crimping on base nylon : 330 x 450 mm to establish a work plan,
 * Power supply :  220 V mono.

Execution stainless steel



Dimensions :   L : 50 cm * P : 45 cm * 70 cm H
    * Net weight : 32 kg

 Basic equipment : machine comes with :
     * 1 chuck
     * 1 set of wheels
Other equipment, stainless steel, at :
* Chucks : diam 55 * 71. 73 * 83 -86 * 100 ...
                   easy-open: 71. 73. 83. 99
* Wheels adapted : No. 26 (ø 55 mm)
                                  No. 28 (ø 71 to 100 mm)



Description:

* Crimping tool table

   Type box rotating
   Ability to crimp: diam 52 to 100 mm
   Maximum height: 230 mm
Command:
 * Crimping lever arm
 * Setting compression of the box by hinged lever
 * Height adjustment by flying with blocking position
 * Crimping on base nylon: 330 x 450 mm to establish a work plan,
 * Power supply : 220 V mono.

Execution stainless steel



 Dimensions :
    L: 50 cm * P: 45 cm * 70 cm H
    * Net weight: 40 kg
  Basic equipment: machine comes with:
     * 1 chuck
     * 1 set of wheels
Other equipment, stainless steel, at:
* Chucks : diam 55 * 71. 73 * 83 -86 * 100 ...
                   easy-open: 71. 73. 83. 99
* Wheels adapted: No. 26 (ø 55 mm)
                                  No. 28 (ø 71 to 100 mm)

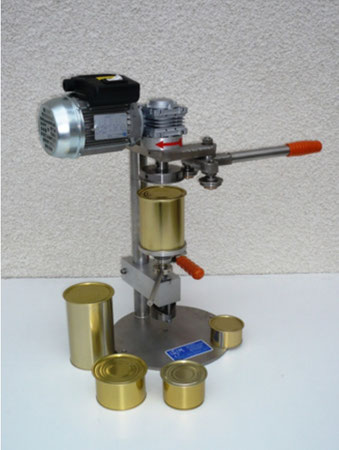

Manual crimpring machine "SERTINOX"

Sertisseuse manuelle de table pour boîtes rondes -SCIM

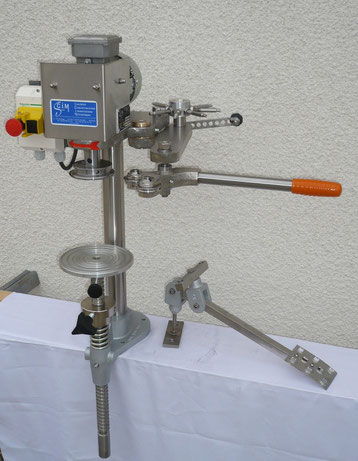

Manual crimping machine "SL85"

Sertisseuse de table pour production moyenne. Sertissage de boîtes rondes (métal, composite, plastique...) - SCIM

Description :



Crimping on tubular steel table



- Type : rotating cans, metal or composite



- Control : manual crimping, by hand lever, can compression by pedal



- Capacity : positions from 55 to 153 mm, maximum height  330 mm



- Preselecting : 8 position rotary  55 to 153 mm



- Power : Electricity 380 V + T (0.55 kw)
(Mono 220 V : option)



 - Choice of tools :
* Standard or special mandrels
* Wheels
* Can support platform…

Sizes : L 400 - P 400



            H 900 mm - Weight : 35 kg



Description :



- Crimping on tubular steel chassis , with base in X on 4 feet adjustable .

- Type : rotating cans, metal or composite

- Control : manual crimping, by hand lever, can compression by pedal

-  Capacity : positions from 55 to 153 mm maximum height  330 mm

- Preselecting : 8 position rotary  55 to 153 mm

- Power : Electricity 380 V + T (0.55 kw)
(Mono 220 V : option)

 -  Choice of tools :
* Standard or special mandrels
* Wheels
* Can support platform…



 (Table model :  consult us)



Sizes : L 650 - P 650 + 250 (pedal) mm



            H 160 mm -  Weight : 75 kg

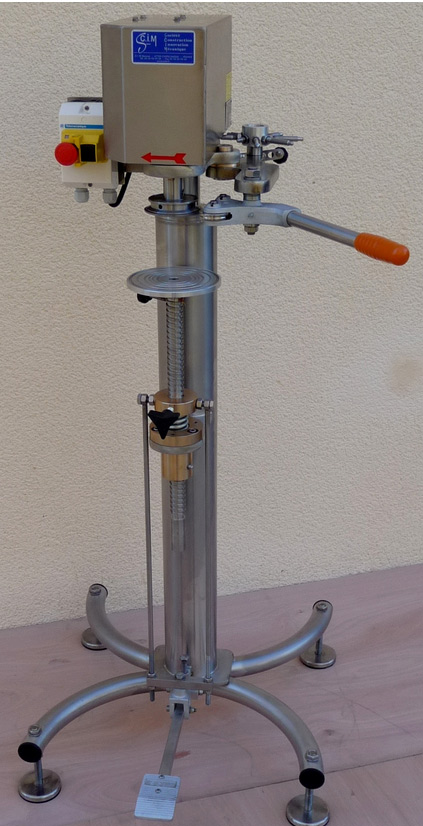

Manual crimping machine "BL6"

Sertisseuse sur châssis inox pour production moyenne. Sertissage de boîtes rondes (métal, composite, plastique...) - SCIM

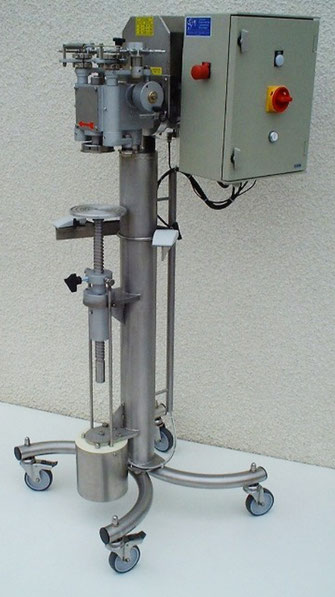

Semi-automatic crimping machine "MECANINOX"

Sertisseuse sur châssis inox. Sertissage de boîtes rondes (métal, composites, plastiques...) - SCIM

Description :

* Crimping on tubular steel chassis  with  base in X on 4 feet or 4 wheels .



 * Type : rotating cans, metal or composite



 *  Capacity : preselection by 8 positions rotary

      52 to 153 mm , height maxi : 330 mm



 *  Production : 600 to 800 cans /hour according to size of cans, and operator’s ability.


 *  Bi-manual control , adjustable height, can compression by pedal



 *  Power : Electricity 380 V + T  : 1,1 KW


 *  Choice of tools :
       - mandrels,
       - wheels,
       - can support platform...



  *  Sizes : L 650 mm x P 650  + 250 mm (pedal)
      Height :  1600 mm   -   Weight : 90 kg about



Options :

· Pneumatic compression (compressed air :



          6 bars), stainless steel  cover

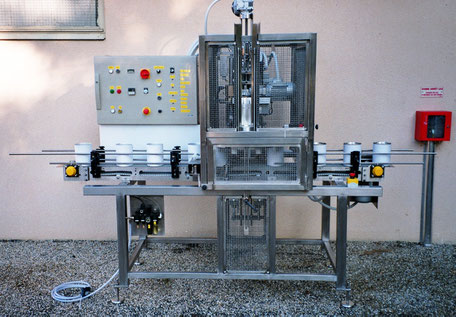

Automatic crimping machine "Multi purpose"

Sertisseuse sur châssis inox permettant des productions continues - SCIM

Description :

- Height adjustable crimping over

- Cover distribution

- Can infeed

- Power supply and control electric and pneumatic cabinet

- Tubular frame on 4 feet

- Mandrel

- Wheel



- Compression

Fixed boxes.

Capacity : positions from 73 à 100 mm, height 260 mm

Hour production : 1200 to 1500 boxes (according to size)

Equipment : choice of 1 position : mandrel, wheel, platform.

Power : electricity : 2.2 KW, 380 V + T
              compressed air : 6 bars, 3 Nm3

Sizes : L : 2000 mm, P : 1000 mm, height 1700 mm

Weight : 350 kg.
